OT Equipments

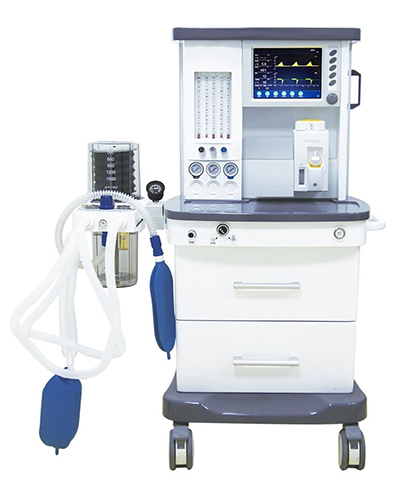

Anesthesia Machine
The Anesthesia machine makes a good performance in Intensive Care Units (ICU), Operation room, Anesthesiology Department and other departments.
Professional design for adult, child and infant inhalation anesthesia and respiratory management, with advanced ventilation modes.
Outstanding ergonomic design, it ranks high level in safty, stability and convenience as well as user experiences.
comfortable classic model, easy to use and be designed together with experienced experts to streamline your anesthesia workflow.
Trust point
- Simplicity: 4 static casters with self-locking function.
- Precision in an anesthesia ventilator with multiple ventilation modes: IPPV, A/C, PCV, SIMV, SIGH and MANUAL.
- Flexible configurations able to customize your requirements.
- International standard and advanced technology suitable for wide range use.
- Compact interface and big screen give you better operating experience.
- Over 5,000 units are installed in more than 200 countries.
- Designed and manufactured by Superstar Medical with over 25 years of experience in ICU field.
Feature
- 10.4” TFT LCD screen displays the Ventilation parameters, Alarm information and Oscillogram.
- High precision flowmeter, instantly know the fresh gas flow to your patient.
- Integrated breathing circuit design, ensure easy operating and keep tidy.
- Multiple working modes such as volume control and pressure limit, adapt to wide range patient.
- Vaporizer with temperature, pressure, flow compensation and self-lock function, keep safety anytime.
- Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects.
- Pressure-time, low-time loop oscillogram and high precision ETCO2, O2 concentration show in real time.
- Vital sign monitor and anesthetic gas monitor are optional.
- ETCO2 module and Anesthesia Gas Scavenging System (AGSS) are optional.
Safety
- 3 level alarm system, visual and sound alarm information.
- With multiple type of alarm, reminder and protection functions.
- Advanced power management control technology.
- Built-in backup battery provide the emergency power supply to the unit.
- Low O2 pressure alarm and N2O cut-off protection

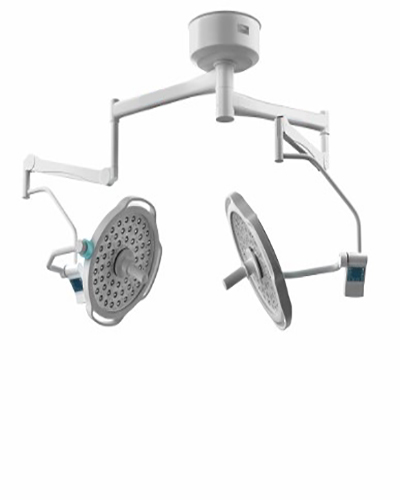

OT Light
New LED lights – energy-saving, with an increased lifespan of more than 50 000 hours.
Shadow dilution
Optimally positioned light source provides enough coverage of the surgical field even with a partial shade. Light field diameter is up to 350 mm.
Increased illumination depth
The design of the light heads provides focusing of the light field over 1.4 m. The light field center is 160 kLx. Correlated color temperature is adjustable within 3 500K – 5 000K, which allows the surgeon to choose the optimal lighting for all operations.
Touch-screen control panel
Each light head of the lighting system has a control panel.
Control panel
- Power on/off
- Dimming
- Regulation of color temperature
- CRI regulation
Easy adjustment allows medical personnel to illuminate the surgical area properly.
Universal ceiling mount
Ceiling mounting system is very simple and affords precise positioning of the light heads. You can choose mobile floor lamp as well as single or double ceiling mount model.
| Model | Convelar 1650 LED
(light head diameter – 500 mm) | Convelar 1670 LED
(light head diameter – 700 mm) |
| Maximum illuminance in 1 m distance | 120 kLx | 160 kLx |
| Color temperature | 3 500 – 5 000 K | 3 500 – 5 000 K |
| Color rendering index | 85 – 96 | 85 – 96 |
| Ratio of radiation illumination
(mW/m²Lx) | < 3.6 | < 3.6 |
| Light field diameter
(adjustable) | 120 – 350 mm | 120 – 350 mm |
| Lighting depth | >1400 | >1400 |
| Lifespan of light sources | >50 000 h | >50 000 h |
| Power consumption | 58 W | 126 W |
Double-system surgical lights LED
Convelar 1675 LED has one light head with a diameter of 500 mm and the other one with a diameter of 700 mm.
Convelar 1677 LED consists of a combination of two light heads with a diameter of 700 mm.

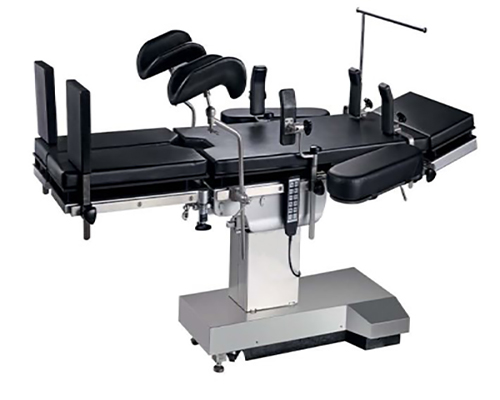

OT Table
Surgery 8800B is a multi-functional operating table that meets various requirements of operations. 340mm horizontal sliding suitable for X-ray and C-arm.”T-shape” base design makes enough free space for the doctors. High automation, low noise, high reliability. Table top main body is made of stainless steel
Specification:
| Tabletop (length × width) | 1960 mm x 500 mm
|
| Elevation (up/down) | 690 mm/1090 mm
|
| Trendelenburg/Reverse Trendelenburg | 30°/30°
|
| Lateral tilt (left/right) | 20°/20°
|
| Head rest (up/down) | 60°/85°
|
| Leg plate (up/down/outward) | 15°/90°/90°
|
| Back plate (up/down)
| 85°/40°
|
| Kidney bridge height adjustment
| 100 mm
|
| Longitudinal slide | ≥ 340 mm
|
Standard Accessories:
- Shoulder support — 1 pair
- Anesthetic screen — 1 piece
- Leg support — 1 pair
- Kidney bridge handle — 1 piece
- Long xing clamp — 1 pair
- Mattress — 1 set
- Body support — 1 pair
- Arm support — 1 pair
- Foot plate — 1 pair
- Fixing clamp — 7 pieces
- Hand remote — 1 piece
- Power line — 1 piece
Pendant System
Aeros 4600 Plus combines the advantages of a flexible noninvasive ventilator with a full-featured invasive ventilator for the ICU. Features: Detachable 12.1″ TFT color touch screen Multi-parameter monitoring Comprehensive ICU ventilator including BIVENT and PRVC Compact, big capacity battery, no air compressor, intra-hospital mobility Flexible device configuration: equipped on a trolley, bed or ceiling pendant
Features:
- Detachable 12.1″ TFT color touch screen
- Multi-parameter monitoring
- Comprehensive ICU ventilator including BIVENT and PRVC
- Compact, big capacity battery, no air compressor, intra-hospital mobility
- Flexible device configuration: equipped on a trolley, bed or ceiling pendant
- Unique metal-based, autoclavable, heated exhalation valve
- Built-in flow sensor, non-consumable design
- Upgradeable ventilation system software, with an available USB port
|
|
Ventilation modes | VCV (A/C) PCV (A/C) PSV PRVC STANDBY SIMV (VCV) +PSV SIMV (PCV)+PSV SIMV (PRVC)+PSV SPONT/CPAP+PSV BIVENT/APRV +PSV NIV/CPAP, NIV-T, NIV-S/T |
Tidal volume | 20 – 2000 ml |
Respiratory rate | 1 – 80 bpm |
Inspiratory time | 0.2 – 9s (adult) 0.2 – 5s (pediatric) |
Inspiration pause time | |
I:E ratio | 1:10 – 4:1 |
Trigger sensitivity (pressure) | -2 – 0 kPa |
Trigger sensitivity (flow) | 0.5 – 20 l/min |
PEEP/CPAP | 0 – 3,5 kPa |
Psupport | |
Pinsp. | 0.5 – 7 kPa |
Pmax | 8 kPa |
O2-Concentration | 21 – 100% |
EtCO2 | optional |
Monitoring | Pressure values: Pplat, Ppeak, Pmean, Pmin, PEEP Volume/Flow values: VTi, VTe, MV, MVe, MVspont Time values: ftotal, fspont, I:E Oxygen monitoring: Inspiratory O2 concentration (FiO2), End-expiratory CO2 concentration (etCO2) Pressure/Volume loop, Pressure/Flow loop, Flow/Volume loop Compliance (dynamic & static), Resistance, Mvleak, RSBI, WOB, I:E, Vdaw, PEEPi |
Alarm | MV high/low Paw high/low Vte low PEEP high/low FiO2 high/low etCO2 high/low fspont high Apnea alarm, Disconnection Flow sensor error Gas supply failure Power supply failure, Battery low/exhausted Apnea |
Power supply | AC100 – 240 V, 50/60 Hz |
Gas supply | 0.28-0.6 Mpa |
Dimensions(Basic unit) | 375×395×430 mm |
Weight | 15 kg |

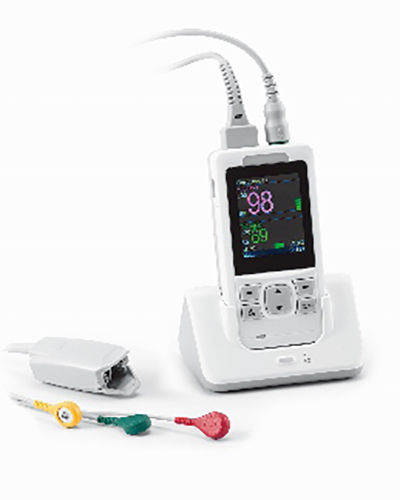

Pulse Oximeter
Dimensions 58.5mm(W)x123mm(H)x28mm(D) Weight 200g BatteryType 3 AA Alkaline batteries or Lithium ion rechargeable battery (Option) Runtime: >16 hours for normal measurement status Display 2.4″ OLED 320*240 pixels Data Storage Displaying way: Trend tabular Trend interval: 2 seconds to 30 minutes Trend parameter: PR, Sp02 Trend data:Spot-checkmode: ID from 1 to 99
Dimensions | 58.5mm(W)x123mm(H)x28mm(D) |
Weight | 200g |
BatteryType | 3 AA Alkaline batteries or Lithium ion rechargeable battery (Option) Runtime: >16 hours for normal measurement status |
Display
| 2.4″ OLED 320*240 pixels |
Data Storage
| Displaying way: Trend tabular Trend interval: 2 seconds to 30 minutes Trend parameter: PR, Sp02 Trend data:Spot-checkmode: ID from 1 to 99, 300 group for each ID. Continuous monitor mode: 60000 group can be stored |
Digital Sp02 | Range: 0-100% Resolution: 1% Accuracy: 70% to 100%: ±2% |
PR
| Range: 25 bpm to 250 bpm Resolution: 1 bpm Accuracy: ±2% or ±1 bpm |
Nellcor Sp02 (Option)
| Range: 0% to 100% Resolution: 1% Accuracy: 70% to 100%: ±3% (neonatal), ±2%(Adult/child) 0% to 69%: unspecified Refreshing rate:7 seconds Pitch Tone: with |
PR
| Range: 20 bpm to 300 bpm Resolution: 1 bpm Accuracy: 20bmp~250bmp ±3bmp, 251~300bmp unspecified Refreshing rate: 7s |
ECG (Option)
| 3 lead (RA, LA, LL or R, L, F) Lead: I, II, III Input impedance: >5.0MQ Input current: <0.1 uA CMRR: Diagnostic mode >90dB HR range: 10 bpm -300 bpm HR Resolution: 1 bpm HR Accuracy: +1% or +1 bpm |
Standard configuration:
Digital SP02, Pulse Rate, Pleth bar& Sp02 waveform,
Optional configuration:
Nellcor Sp02, 3-lead ECG, infrared receiving adapter,
Rechargeable lithium battery (include battery charger &
AC-DC adapter), Perfusion index

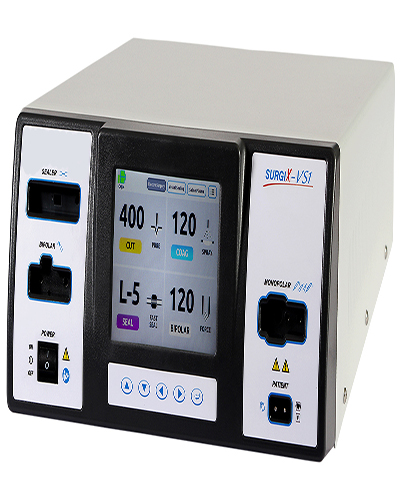

Surgical Diathermy
Presenting SurgiX – VS1, a high-performance electrosurgical solution with unique features such as advanced feedback technology, personalized settings and safety monitoring; an exemplary solution for multiple specialty ORs
- 5.6-inch Touch Screen LCD
- Modes: Vessel Sealing System, Saline Plasma Bipolar Resection, High Performance Diathermy
- 400 watts, One Monopolar & One Bipolar
- 7 Cut modes, Max Power – 400 W
- 7 Coag modes, Max Power – 300 W
- 4 Bipolar modes, Max Power – 120 W includes BiCut
- Vessel Sealing: 2 vessel sealing modes; Max Power – 150 W
- Saline plasma: 3 modes in cut & coag; Max Power – 300 W
- Personalized Setting – 99 programs

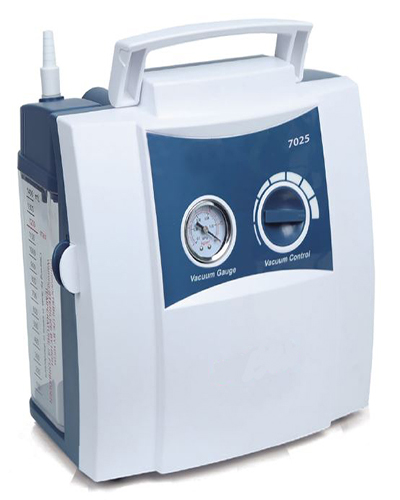

Suction Machine
Innovative Direct Plug-in Bottle System & Double anti-overfl ow protection system Features: Powerful suction up to 0.08Mpa Double anti-overflow protection system Direct Plug-in Bottle System, only one push to take out bottle 1400ml capacity suction bottle Innovative filter technology prevents penetration of micro organisms and secretion into the device Only one inlet for suction hose
Features:
- Powerful suction up to 0.08Mpa
- Double anti-overflow protection system
- Direct Plug-in Bottle System, only one push to take out bottle
- 1400ml capacity suction bottle
- Innovative filter technology prevents penetration of micro organisms and secretion into the device Only one inlet for suction hose, avoid misleading of air inlet and outlet
- Easy clean & sterilize & user-friendly operations 20L & 25L air flow options
Accessories:
- 1 Silicone suction hose Ø6mm, L=1.30m
- 1 Universal PC power cord wires
- 1 Filter
- 1 Suction catheter (free)
Functions:
Model No | Air Flow Vacuum
| Max. Vacuum
| Vacuum Bottle Capacity
| Volts | Watts | Noise | Alarm | Indicator | Battery
|
VACUS 7020 | ≥25L/minn | 0.08MPa | 1400ml | AC 220V-240V | 130W | ≤50 dB(A) | No | No |
No
|
System Map | Functions | Vacus 7025 |
Pump Driving System | Max. Air Flow | 25L/min |
Max. Vacuum Pressure | 0.08MPa | |
Work Mode | Intermittent Run | |
Bottle System | Max. Jar capacity | 1400ml |
Overflow Protection | Double Safety Protection | |
Innovative Filter | Waterproof Reusable | |
Inlet Cover | One only, and no need outlet | |
Operate System | Vacuum Gauge Range | 0.00MPa ~ 0.1MPa(0psi ~14psi) |
Vacuum Control Range | 0.02MPa ~ 0.08MPa | |
Suction Hose Hang Groove | One, at the left | |
Wall mounted Hang Tip | Two, at the back | |
Hidden Rotatable Handle | Yes, at the top | |
3 Safety System | Floating method | First level stop overflow |
Filter method | Second level stop overflow | |
Overheated Protection | Yes | |
Electrical System | Power Consumption | 130 W |
Auto Power off | Every 30 minutes | |
Power Fuse | 1.0 A -φ5×20mm | |
Noise Level | ≤50dB(A) | |
Packaging Details | Machine Body Size | 283x195x273mm |
Import Carton Size | 415x360x300mm for 2 units | |
Net Weight per Unit | 3.75 kg | |
Import Gross Weight per Carton | 9.8 kg |
