Neonatology

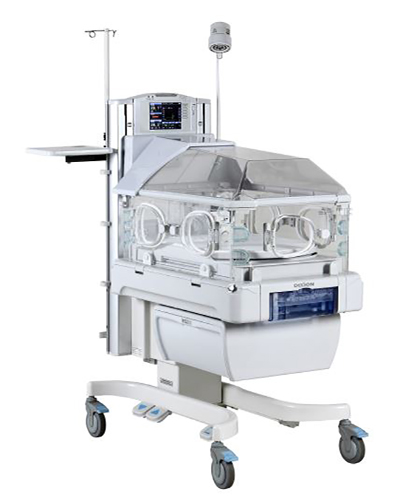

Neonatal Care Resuscitation
Infant Incubator Mode (Close Mode) For the provision of a similar maternal uterus environment for the neonate to provide stable and controlled comfortable thermal environment and servo-controlled humidity and oxygen level. It is ideal for use in Infant temperature recovery, resuscitation and other occasions. Infant Radiant Warmer Mode (Open Mode) Uniform heat distribution, maintaining an […]
Infant Incubator Mode (Close Mode)
For the provision of a similar maternal uterus environment for the neonate to provide stable and controlled comfortable thermal environment and servo-controlled humidity and oxygen level. It is ideal for use in Infant temperature recovery, resuscitation and other occasions.
Infant Radiant Warmer Mode (Open Mode)
Uniform heat distribution, maintaining an optimal thermal environment for caregiver to provide immediate access to the newborn, it is ideal for use in labor and delivery rooms, NICU, and Operating Room.
Monitor
Physical parameters were monitored such as Neonatal ecg, respiration, noninvasive blood pressure, oxygen saturation, pulse rate, Exhaled carbon dioxide.
| Incubator Mode(Close Mode) | |
| Mode of control | Air mode and Baby mode controlled by
micro-computer
|
| Air temperature control range | 20°C-37°C(override mode 37°C-39°C) |
| Baby temperature control range | 34°C-37°C(override mode 37°C-38°C) |
| Accuracy of skin temperature sensor | within ± 0.2°C |
| The temperature fluctuation between incubator
temperature and average incubator temperature (under stable temperature condition) | ≤0.5°C
|
| Temperature uniformity | ≤0.8°C(mattress is on the horizontal position)
≤1.0°C(mattress is on the maximum tilt position)
|
| Inclination of the bassinet | ± 12° (stepless adjustable) |
| Noise inside hood (stable working condition) | ≤50dB(A) |
| Relative Humidity Level:
Humidity display range Humidity control range Accuracy of humidity display Accuracy of humidity control |
0%RH~100%RH 0%RH~90%RH ± 5%RH ± 5%R
|
| Oxygen Level:
Indication range of oxygen concentration Control range of oxygen concentration Indication accuracy of oxygen concentration
Control accuracy of oxygen concentration |
0%~100% 20%~60% ± 2% (The set value is below 25%) ± 3% (The set value is above 25%) ±4% 02 |
| Infant Radiant Warmer Mode(Open Mode)
| |
| Control Mode | Pre-warm mode, manual mode and baby mode
are controlled by micro-computer |
| Baby mode temperature control range | 34°C-38°C |
| Control accuracy ( The fluctuation range between Skin temperature and Set temperature) | ≤0.5°C
|
| Temperature uniformity of mattress | ≤2°C
|
| Performance Index Under Thepulse Oximetry
| |
| SPO2 Display range | 1- 100% |
| SPO2 Display resolution | 1% |
| SPO2 Alarm setting range | Upper limit:50 ~100%
Lower limit: 45-95%
|
| PR Display range | 25-240 bpm |
| PR Display resolution | 1bpm |
| PR Alarm Setting range | Upper limit: 80 – 240 bpm
Lower limit: 35-180 bpm |
| PI Display range | 0.02-20.0% |
| PI Display Resolution | 0.01% |
| Sensitivity setting | Normal,APOD, Max,
Factory default setting: Normal |
| FastSAT | off, on, Factory default setting: off |
| Mean time | 2S -4S, 4S-6S, 8S,10S, 12S, 14S, 16S
Factory default setting: 8S |
| FailureAlarm
| Power Failure Alarm, Fan Motor Alarm, Sensor, FailureAlarm, Deviation Alarm, CanopyFailure Alarm, OverTemperature Alarm, Water tank placed false alarm, WaterShortage Alarm, SettingAlarnr Checking Alarm, System _
Alarm, etc. |
| Transportation
| Storage Temperature range: -20°C~+55°C
Relative Humidity range: ≤93% Atmospheric pressure: 500hPa – 1060hPa |
| Environment Requirement
| Operating range: 20°C-30°C(Set temperature
should be 3°C higher than the environment temperature) Relative Humidity range: 30%~75% Ambient air velocity rate: ≤0.3m/s |
| Product Packaging
| Package: The whole unit is packed into one carton
Size: 1140mm x 660mm x 2315mm Gross Weight: 160Kg |
| Power supply
Power Requirement Auxiliary Mains Power Output Current | AC220V-230V/50Hz
1300VA AC220-230V/50Hz, Max 1A |
Standard Configuration
Main body (including baby compartment, Base, Controller,
I.V.pole and tray), Sensor box, Skin temperature sensor and
Vertical height adjustment stand (VHA stand), Warmer module.
Optional Configuration
Weighing system, Monitor shelf and Disposable
skin temperature sensor, Observation lamp, Sp02, etc.

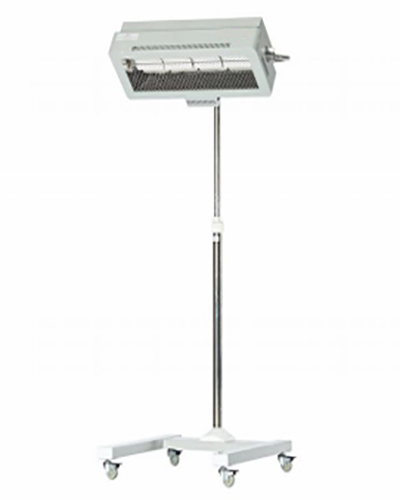

Infant Radiant Warmer
Features: 4 ceramic heaters with protective covering for burns Stainless steel stand Temperature regulator Height of the lamp controller 116cm-164cm Lamp base on wheels with brakes Specifications: The length of infrared waves 5-10 nm Power requirements 220 V, 50 A The thermal power 0-1450 watts Heating speed 0.3 °C/min. Tiltingangle of the heating lamp 0-90° […]
Features:
- 4 ceramic heaters with protective covering for burns
- Stainless steel stand
- Temperature regulator
- Height of the lamp controller 116cm-164cm
- Lamp base on wheels with brakes
Specifications:
| The length of infrared waves | 5-10 nm |
| Power requirements | 220 V, 50 A |
| The thermal power | 0-1450 watts |
| Heating speed | 0.3 °C/min. |
| Tiltingangle of the heating lamp | 0-90° |
| The height of the heating lamp on the surface of the crib | Not less than 700 mm |
| Operation at ambient temperature | 10-15°C and relative humidity 30-75% |
| Weight | Gross/net – 25/21kg |
| Unit dimensions | 640 mm× 260 mm×170 mm |

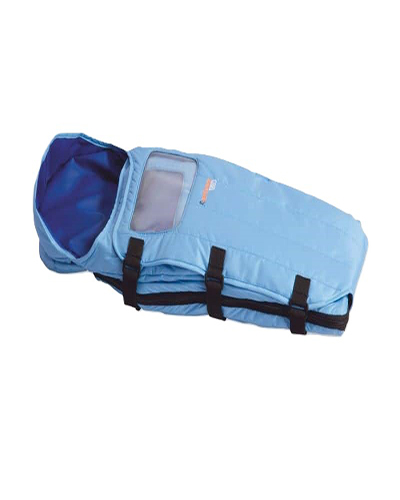

Embrace Warmer
The Embrace Nest Warmer is a low-cost warmer solution that maintains the body temperature of premature and low-birth-weight babies at the desired level, even with intermittent access to electricity.
Steady supply of electricity is lacking in many hospitals in developing countries, adding to problems of limited resources and overcrowding. Premature infants, lacking the ability to maintain their temperature, must be provided warmth for them to survive. The Embrace Nest Warmer is an apt product for low-resource settings and simulates Kangaroo Mother Care (KMC) for newborns.
The Embrace Nest Warmer can also be used for transporting hypothermic newborns.
Read our Buyer’s Guides to learn more about Temperature Stability: Incubators, Warmers, Wraps and Cooling Devices.
Key Features
Inexpensive
The cost of an Embrace Nest Warmer is less than 1% of that of a standard incubator.
Effective
Uses an effective phase-change material to rapidly stabilize the temperature of an infant suffering from hypothermia.
Durable
It can be reused several times.
Portable
The device is lightweight and portable. The baby can be held in the mother’s arms when the warmer is being used.
Hygienic
Can be cleaned easily with just soap and water.
Safe
Simple and intuitive to use. It has been validated through routine safety testing and extensive clinical trials.
Specifications
Standard Accessories
- Accutemp heater (1x)
- Babywrap (1x)
- Warmpak (1x)
Optional Accessories & Add-ons
- Additional accutemp heater
- Babywrap refill pack
- Warmpak refill pack

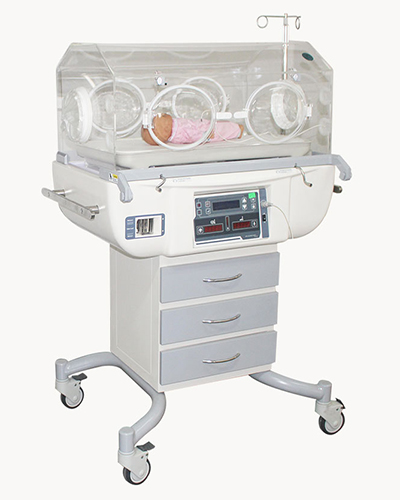

Intensive Care Incubator
The INC 100 has been specially designed to provide the safest and most stable environment for the critical neonate. With a wide range of accessories, it can be tailored to meet any situation arising in the care of the infant. The excellent nursing facilities, safe and reliable operation, ease of cleaning and sturdy construction of the INC 100 make it a vital part of the equipment in the hospital.
Features:
- Elbow operated ports: Allow easy access and eliminate cross-infection.
- Large front: Provides access for major procedures and easy removal of baby.
- Trendelenburg and Fowler positioning: Up to 8° on both sides.
- Tray: Easy-to-pull-out baby tray.
- Canopy with unique hinges: Easy to clean inside the incubator.
- Self-supporting tube and lead apertures: Easy and safe to insert tubes and cords made from autoclavable silicone.
- Intuitive display: Easy to read and operate microprocessor-based.
Transport Incubator
The controller features a display that is easy to read at any angle during transport. Display for air and skin temperature help you maintain, control and provide essential information about the infant’s thermal support. Microprocessor controlled system with air and skin modes of operation. Display both temperatures i. e. Air/Skin temp along with Set temp. Soft touch operation with digital display and extensive alarms.
Easy Access
Quick and easy access through the side access door and front port holes. The side door folds down and the matteress retracts out from the hood to access for emergency procedures. The door and tubing ports offer ventilator tubing support .Infant restraint strap attached to the baby bed.
Power Source
Transport incubator operates on AC or DC power using AC when available or switching to its internal battery when necessary
Battery : The batteries used in the system are 12 volt 18ah. Sealed maintenance free VRLA batteries.
Charge Time : 8-10 hrs. per battery from full discharge.
Hood options : Standard single wall / double wall hood (on demand).
Chassis Body : Plastic (fibre) to shock proof the system
Standard Features
• Single wall Hood • Skin temperature probe / Air temp. Probe • 2 access doors • 1 baby belt • Collapsible trolley
Optional
• Examination lamp • 2 disposable infant restraint straps • 1 iris port • 6 tubing ports • Accessory shelf • Suction, Oxygen cylinder, pressure regulatory assembly, Flow Meter, Remote Controlled movement of the Trolley.
Control Displays
| Battery condition status | single led indication of low battery condition on the side panel |
| Power mode | illuminates AC, DC or external DC |
| Air/Baby temp °C | displays incubator air temp / baby temperature |
Dimensions in inches (Approx.)
| Height without hood | 39″ |
| In collapsible stand mode | 29″ |
| height with hood | 49″ |
| Width | 23″ |
| Length | 53″ |
| Baby bed | 20×11″ |
| Weight | 75kg |
| Backup | 60-90mns |
| Size of Castors | 5″ PU |
| Sealed maintenance free batter | VRLA Batteries Charge time : 10hrs.(Approx.) |

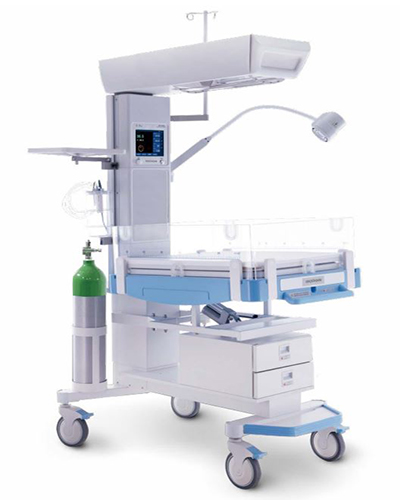

LED Phototherapy
8-inch LCD color touch screen Three temperature control modes: pre-warm mode, manual mode and baby mode servo control Masimo SpO2 pulse oximetry function to measure blood oxygenand pulse effectively during motion and low perfusion* (optional) The horizontal angle of warmer module is adjustable, which is convenient for clinical care Electric tilting system conveniently adjusts the […]
- 8-inch LCD color touch screen
- Three temperature control modes: pre-warm mode, manual mode and baby mode servo control
- Masimo SpO2 pulse oximetry function to measure blood oxygenand pulse effectively during motion and low perfusion* (optional)
- The horizontal angle of warmer module is adjustable, which is convenient for clinical care
- Electric tilting system conveniently adjusts the angle of the bed, and the transition is smoother
- The transparent panels surrounded bassinet can be turned downward or disassembled
- Dovetail shape column from both sides for installing more medical devices
- X-ray cassette under the bassinet lntegrated observation lamp is adjustable to reduce the impact of light stimulation on newborns
- Foldable tray, easy to put aside without dismantlement
- Independent over-temperature protection system, multiple failure alarm indications to provide multiple safety protection
- APGAR timer
- Hands-free alarm silence, Non-contact alarm mute function to maintain a clean and quiet nursing environment (optional)
- Bilirubin phototherapy treatment function, LED light source, effective lifespan 50000 hours (optional)
- Low pressure aspiration function, T-piece resuscitation function and air/oxygen blender function (optional)
- Built-in weighing system to conveniently measure the weight of children and monitor the trend of weight changes (optional)
- RS232 connector to support data transmission
Standard Configuration
Warmer module, controller, skin temperature sensor, bassinet, tray, IV pole, stand, electric tilting system, drawers
Optional Configuration
SPO2 pulse oximetry monitoring device, phototherapy unit, low pressure aspirator, T-piece resuscitator, air/oxy[1]gen blender, air and oxygen cylinder, weighing system, hands-free alarm silence, VHA stand, observation lamp.

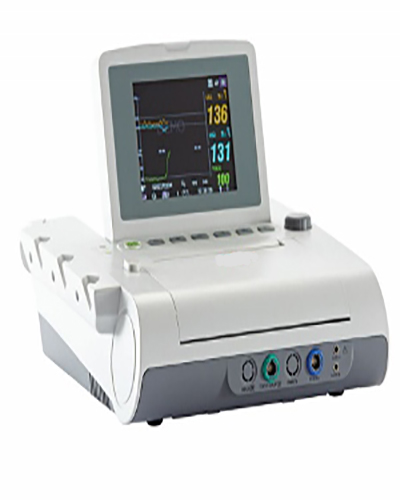

Fetal Monitor
Overtone 6200 is a small and lightweight fetal monitor for the monitoring of the unborn child. Two versions allow the best choice for optimal functional configuration: prenatal diagnosis of an unborn child or twins and diagnosis of an unborn child before and during birth. There is a possibility of connection to the central monitoring station via network connector.
| Features: | Overtone 6200 |
| Ultrasound technique | Ultrasound pulse doppler with autocorrelation |
| Ultrasound frequency | (1.0± 10%)MHz |
| FHR range | 50 bpm – 240 bpm |
| Invasive TOCO: | |
| Pressure measurement range | 0-100 mmHg |
| Zero mode | automatic/manual |
| Fetus EKG Method | „beat by beat“ |
| Fetal movement measurement: | manual transducer |
| Automatic fetal movement mark
Manual fetal movement mark | ultrasound transducer |
| Screen: | |
| Inclination’s angle | 0 – 90º |
| Resolution | 320 x 240 /640×480 |
| Failure alarm indication | Over temperature/ power failure/ setting and so on |
| Printer | Built-in, long- life thermal printer |
| Print speed | 1,2,3 cm/min (optional) |
| Thermosensive paper | Z-Typ, 150 mm ; 152 mm |
| Data transference interface | RS-232 and RS-485, local network support |
| Software | Software for the data assessement, storage and printing |
| Battery | Rechargable, Li-Ion |
| Rated storage | 6000 mAh |
| Rated voltage | 14,8 V |
| Working time | >7 hours (depending on configuration) |
| Current supply | 220 V, 50 Hz |
| Electrical protection class | Klasse I |
| Dimensions | 350 x 300 x 104 mm |
| Weight | 3,5kg |
