Mortuary Freezing

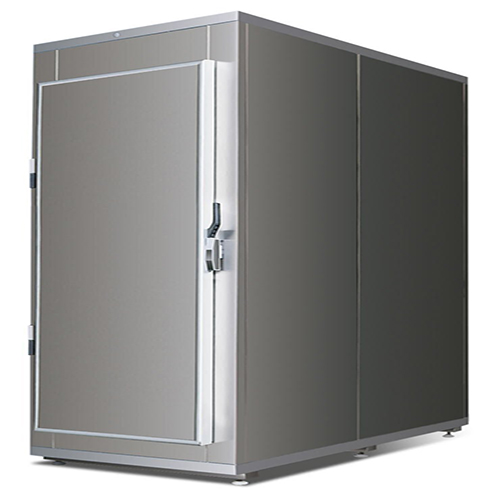

Cold chamber for three bodies - 1 door with front opening
Available in the following versions:
- CEACA11 stainless steel, refrigeration temperature 0 °C;
- CEACZ11 plastic-coated zinc, refrigeration temperature 0 °C;
- CEACA12 stainless steel, refrigeration temperature -20 °C;
- CEACZ12 plastic-coated zinc, refrigeration temperature -20 °C.
Dimensions:
| Width | Height | Depth | |
| Min. | 96 cm | 208 cm | 216 cm |
| Max. | 114 cm | 248 cm | 236 cm |
The measurements shown are indicative only. The exact measurements will be indicated in appropriate technical specification sheets, based on the specific use and dimensions of the room.
| Technical Data | -CEACA11 -CEACZ11 | -CEACA12 -CEACZ12 |
| Operating temperature | 0 °C | -20 °C |
| Temperature range | -5°C / +5°C | -10°C / -20°C |
| Power comsumption | Kw 1.1 | Kw 1.3 |
| Supply voltage | V230 / 1 / 50 Hz | V230 / 1 / 50 Hz |
| Cooling capacity | W 1600 0°C / +35°C | W 1200 -20°C / +35°C |

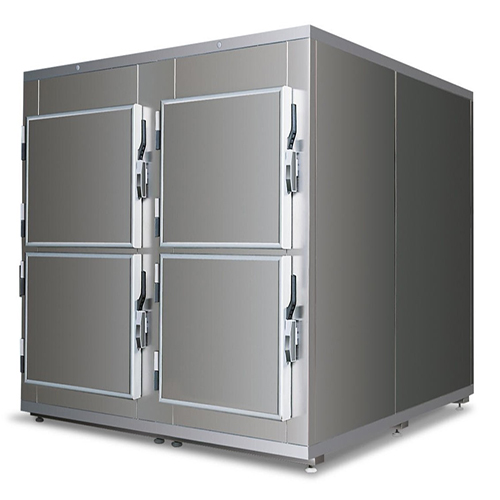

Cold chamber for four bodies - 4 doors with front opening
Available in the following versions:
- CEACA21 stainless steel, refrigeration temperature 0 °C;
- CEACZ21 plastic-coated zinc, refrigeration temperature 0 °C;
- CEACA22 stainless steel, refrigeration temperature -20 °C;
- CEACZ22 plastic-coated zinc, refrigeration temperature -20 °C.
Dimensions:
| Width | Height | Depth | |
| Min. | 186 cm | 186 cm | 216 cm |
| Max. | 228 cm | 208 cm | 236 cm |
The measurements shown are indicative only. The exact measurements will be indicated in appropriate technical specification sheets, based on the specific use and dimensions of the room.
| Technical Data | -CEACA21 -CEACZ21 | -CEACA22 -CEACZ22 |
| Operating temperature | 0 °C | -20 °C |
| Temperature range | -5°C / +5°C | -10°C / -20°C |
| Power comsumption | Kw 1.1 | Kw 1.3 |
| Supply voltage | V230 / 1 / 50 Hz | V230 / 1 / 50 Hz |
| Cooling capacity | W 1700 0°C / +35°C | W 1300 -20°C / +35°C |
Cold chamber for six bodies - 2 doors with front opening
Available in the following versions:
- CEACA23 stainless steel, refrigeration temperature 0 °C;
- CEACZ23 plastic-coated zinc, refrigeration temperature 0 °C;
- CEACA24 stainless steel, refrigeration temperature -20 °C;
- CEACZ24 plastic-coated zinc, refrigeration temperature -20 °C.
Dimensions:
| Width | Height | Depth | |
| Min. | 186 cm | 186 cm | 216 cm |
| Max. | 228 cm | 228 cm | 236 cm |
The measurements shown are indicative only. The exact measurements will be indicated in appropriate technical specification sheets, based on the specific use and dimensions of the room.
| Technical Data | -CEACA23 -CEACZ23 | -CEACA24 -CEACZ24 |
| Operating temperature | 0 °C | -20 °C |
| Temperature range | -5°C / +5°C | -10°C / -20°C |
| Power comsumption | Kw 1.2 | Kw 1.7 |
| Supply voltage | V230 / 1 / 50 Hz | V230 / 1 / 50 Hz |
| Cooling capacity | W 1700 0°C / +35°C | W 1300 -20°C / +35°C |

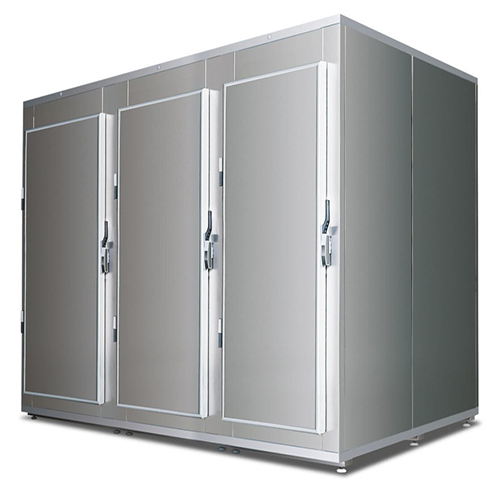

Cold chamber for nine bodies - 3 doors with front opening
Available in the following versions:
- CEACA31 stainless steel, refrigeration temperature 0 °C;
- CEACZ31 plastic-coated zinc, refrigeration temperature 0 °C;
- CEACA32 stainless steel, refrigeration temperature -20 °C;
- CEACZ32 plastic-coated zinc, refrigeration temperature -20 °C.
Dimensions:
| Width | Height | Depth | |
| Min. | 276 cm | 194 cm | 216 cm |
| Max. | 322 cm | 248 cm | 236 cm |
The measurements shown are indicative only. The exact measurements will be indicated in appropriate technical specification sheets, based on the specific use and dimensions of the room.
| Technical Data | -CEACA31 -CEACZ31 | -CEACA32 -CEACZ32 |
| Operating temperature | 0 °C | -20 °C |
| Temperature range | -5°C / +5°C | -10°C / -20°C |
| Power comsumption | Kw 1.6 | Kw 2.1 |
| Supply voltage | V380 / 3 / 50 Hz | V380 / 3 / 50 Hz |
| Cooling capacity | W 2500 0°C / +35°C | W 2210 -20°C / +35°C |

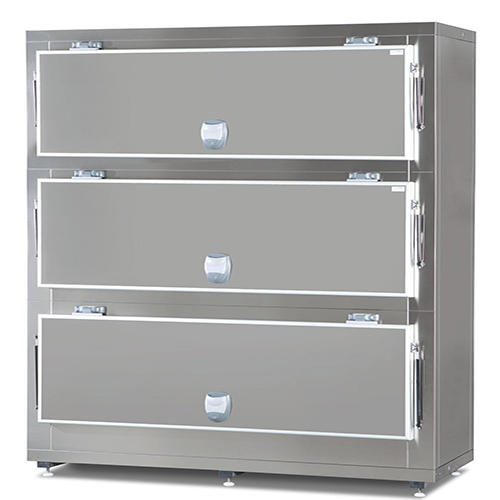

Cold chamber for three bodies - 3 doors with lateral opening
Available in the following versions:
- CEACA45 stainless steel, refrigeration temperature 0 °C;
- CEACZ45 plastic-coated zinc, refrigeration temperature 0 °C;
- CEACA46 stainless steel, refrigeration temperature -20 °C;
- CEACZ46 plastic-coated zinc, refrigeration temperature -20 °C.
Dimensions:
| Width | Height | Depth |
| 240 cm | 218 cm | 96 cm |
The measurements shown are indicative only. The exact measurements will be indicated in appropriate technical specification sheets, based on the specific use and dimensions of the room.
| Technical Data | -CEACA45 -CEACZ45 | -CEACA46 -CEACZ46 |
| Operating temperature | 0 °C | -20 °C |
| Temperature range | -5°C / +5°C | -10°C / -20°C |
| Power comsumption | Kw 1.1 | Kw 1.3 |
| Supply voltage | V230 / 1 / 50 Hz | V230 / 1 / 50 Hz |
| Cooling capacity | W 1600 0°C / +35°C | W 1200 -20°C / +35°C |

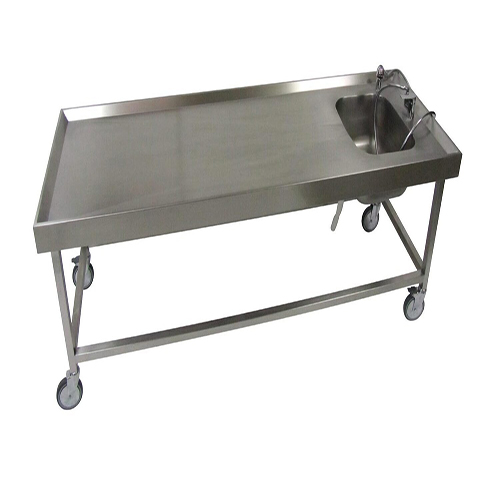

Autopsy Tables
Anatomical table for performing autopsies, made entirely in surgical grade stainless steel, for the washing of bodies. Consisting of a support platform suitably inclined for water drainage and a rimmed edge for retaining liquids. The supporting structure is made of surgical grade stainless steel tubing, with 4 swivel castors, two of which have a parking brake.
Standard features:
– stainless steel sink ;
– hot and cold water mixer taps with elbow operation;
– shower which can be extended over the entire surface;
– supply and drainage system for connection preparations.

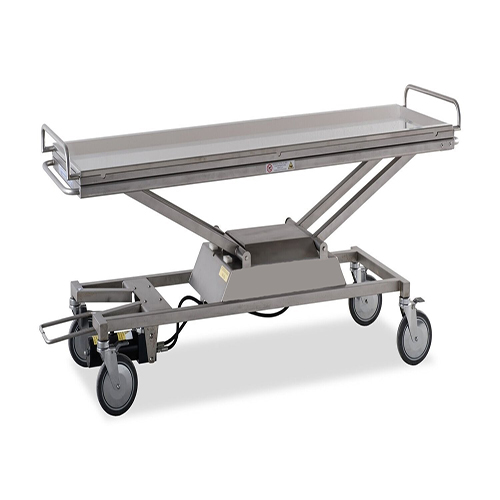

Transport Trolleys
The body trolley with adjustable height, made in stainless steel AISI 304, has been studied to solve the problems coming from the transport and the movenent of bodies from the bed to the department where they are placed on the anatomy table of the mortuary. Thanks to its characteristics, it can be used even only by one operator who can place it in the right position where there is the body of the dead person, overcoming the troubles due to the different heights of supporting planes. The trolley can be inclined of 45° both in the head and foot side allowing all those operations necessary to body preparation (autopsy, dressing, etc.). The stainless steel supporting stretcher can be completely extracted and used even alone.
Size:
| Width | Height | Depth |
| 208 cm | 54 (110) cm | 63 cm |
Washing Sinks

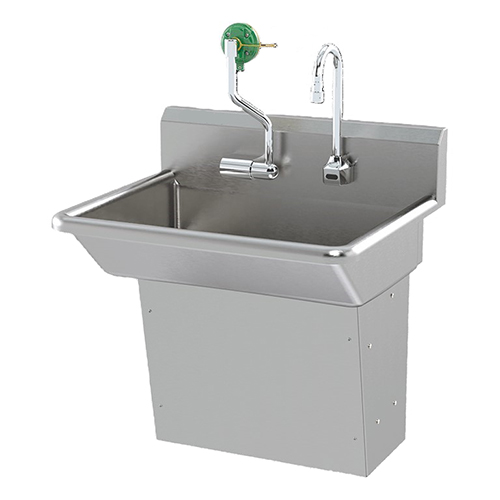

Hand Wash Sink with AXION Eye/Face Wash
Model 7660 barrier-free eye wash sink with eye and face wash features the medically acclaimed AXION MSR eye/face wash head assembly. This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors’ office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature’s ocular cavity drain.
- 24″ wide 14-gauge Type 304 Stainless Steel sink mounted on 14 gauge Type 304 Stainless Steel sink supports
- Integral to the sink construction is the seamless 1-1/2″ male NPT drain with 1-1/2″ trap and tailpiece supplied
- Motion-activated faucet operation (operating on 110VAC or battery power) for safety and peace of mind
- Supplied with .5 gpm and 1.2 gpm laminar flow faucet nozzles, with an optional 2.2 gpm laminar flow nozzle available for higher flow applications
- Safety mixing valve included supplies tepid water to the eyewash
- Faucet mixing valve included supplies the faucet with an output temperature range of 90-140F
- Eye/face wash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
- Rounded sink edges lessen risk of injury and hinder both non-hygienic clutter and water pooling
- Beautiful satin finish resists stains and corrosion
- Easy access to the mixing valves, faucet batteries, plumbing and drain through the large front panel
Certified by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment. CSA B125.1, and CSA B45.4 certified. NSF61, ASSE 1017 and ASSE 1070-2015 certified faucet mixing valve.
