ICU and CCU

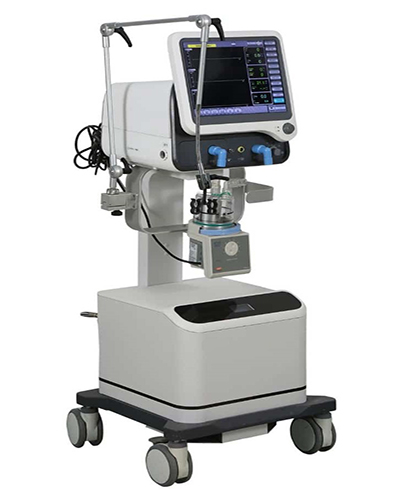

Ventilator
The ventilator makes a good performance in operation room, ICU department and emergency treatment. It used
to assist or replace the spontaneous breathing for adult and pediatric more than 2kgs. flexible configuration, good quality and competitive.
FEATURES
Multiple ventilation modes, suitable for ICU, emergency department and operation room etc: (PRVC, APRV, DUOLEVEL,
V-SIMV, P-SIMV, IPPV, A/C, PCV, PSV, SPONT/CPAP, SIGH, MANUAL).
Pressure and flow dual triggering mechanism make patient breathe better and more comfortable.
Rapid oxygen supply, automatically offer high flow rate oxygen within two minutes.
Pressure-Time, Flow-Time, Volume-Time, ETCO2-Timeoscillogram, real-time display the condition of patient in all respects.
Separate design of electronic circuit and gas flow rate keep safe running of ventilator.
Compact long life internal battery can provide emergency power, avoid risk of patient.
3 level alarming system display overall condition of machine, easier for users to find and solve problems according to indication.
Oscillogram freezing and recovery offer doctors a better understanding of the real-time situation for patient.
Self-check before operation, ensure every port of machine is in good condition.
Trust Point
- Simplicity: easy to use, easy to move with 4 wheels.
- Choice: adapt the equipment to your patients and procedures freely
- Designed and manufactured with over 23 years experience in this area.
- Flexible configurations to suit your needs.
- International standard and advanced technology suitable for all baby patient around the world.
- Compact interface and screen display give you better operating experience.
- Over 2,000 units installed in the world.

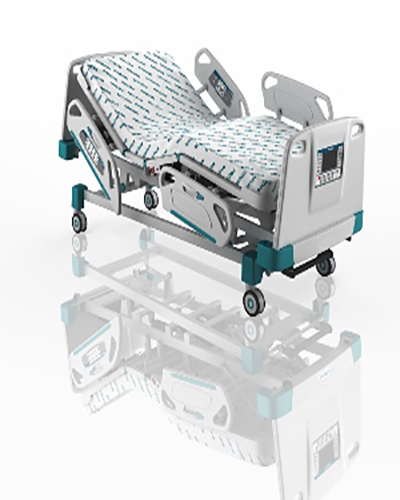

ICU Bed
Our products are made with care and meticulous attention to detail, which gives you the opportunity to provide optimal medical care. Hi-Low Function This function is for the patient’s egress and examination. It offers a comfort working atmosphere for caregivers and prevents backache. Restraint Strap Holder To enhance safety of the patient by fastening the safety belt.
| Hi-Low Function
This function is for the patient’s egress and examination. It offers a comfort working atmosphere for caregivers and prevents backache. | Restraint Strap Holder
To enhance safety of the patient by fastening the safety belt. |
| Trend & Reverse Trend
This function is capable of 12° Trend/Reverse Trend and can be easily activated at any height to facilitate medical treatments.
| Electric CPR Controller
There are two CPR controllers located on both sides of the bed. The CPR function can put the whole bed into initial horizontal level immediately from any position. It aims to facilitate medical emergency treatment. |
| Chair position
Design to increase patient comfort. Smart function for easy setting and reducing the need for caregiver to reposition. | Casters
5” central braking casters |
| Flat position
Design to facilitate caring work for caregivers. Smart function for easily setting the sleeping platform to the total flat level. | Central Brake System
The central device is located at the foot end under the bed. It is convenient and easy to lock and unlock the casters. |
| Orthopedics Traction Socket
Total of 4 sockets to support the traction frame construction. | Head & Foot Board Lock System
– Easy lock and release – Keeps the board firmly even when moving the bed. |
| I.V. Pole Socket
– Total of 6 sockets supporting I.V. Pole on the bed, 4 located on each corner and 2 at the middle of the bed on both sides. – I.V. Pole storage is designed under the ABS platform of the bed. | Removable ABS Platform
– 4-section air-permeable washable ABS platform decreases bacteria accumulating and can be easily cleaned. – Special anti-slippery ABS platform |
| Embedded Control Panel (External)
– Located on both sides of external ABS side rails for caregivers to control. – 5 sets of leveling controllers for adjusting Backrest, Bed Hi-Low, Knee-Gatch, Auto-Settee and Trend & Reverse Trend. – The graph on the panel is legible and the controls are friendly operated. | Embedded Control Panel (Internal)
– Located on both sides of internal ABS side rails for patients to control. – 4 sets of leveling controllers for adjusting Backrest, Bed Hi-Low, Knee Gatch and Auto-Settee.
|
| ABS Side Rail
– 4-section tuck-away ABS side rails – Embedded control panels are located at internal/external backrest side rails. – Side-rail safety knobs are located under the removable ABS platform. – ABS-integrated injection molding with smooth finishing | Attendant Control Panel
– Located at the footend of the bed. – Individual control functions include Backrest, Bed Hi-Low, Knee Gatch, Auto-Settee, Trend & Reverse Trend, Chair & Flat Position and Position Memory setting also available. – Digital LED indicator to show the angle of Backrest, Knee Gatch, Trend & Reverse Trend and the height of the bed separately. – Security Lock function can lock Backrest, Knee Gatch, Bed Hi-Low function separately. |
| Mattress Stopper
Prevents the mattress from slipping. | Removable ABS Head & Foot Board
– Injection Molding ABS Board – Easy and durable application – Round handle facilitates pushing of the bed. |
Specification:
| Dimension (L×W) | 224cm × 109cm |
| Sleeping surface | 194.5× 91.5cm |
| Hi/Low range | 30cm (48-78cm) |
| Backrest angle | 0-75⁰ |
| Knee Gatch | 0-40⁰ |
| Trend./Rev.trend | ±12⁰ |
| Max.weight capasity | 230kg |

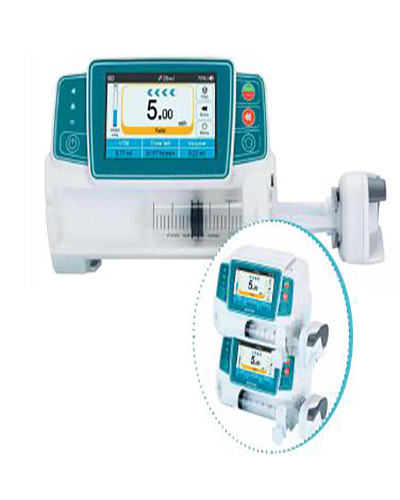

Syringe Pump
Features: High accuracy: ±2% Fast start function against start delay Anti-bolus function DERS (Drug error reduction system) -(Instilar 1450Pro) IP Level: IP34 11 hours battery back-up time 4.3″ colourtouch screen Intuitive operation system Automatic calibration Inter-Lockable
Features:
High accuracy: ±2%
Fast start function against start delay
Anti-bolus function
DERS (Drug error reduction system) -(Instilar 1450Pro)
IP Level: IP34
11 hours battery back-up time
4.3″ colourtouch screen
Intuitive operation system
Automatic calibration
Inter-Lockable

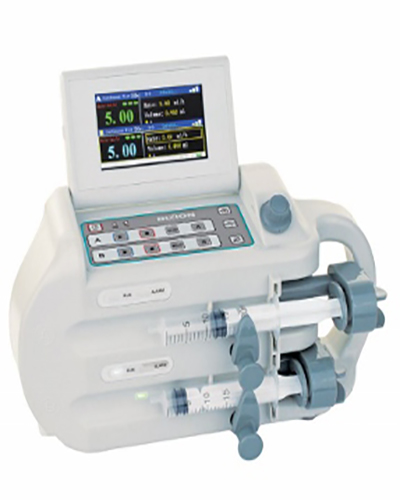

Dual Syringe Pump
This pump has two syringe drive system delivering drugs independently and cooperatively. Features Pop-up monitor: large screen 125 mm (128 × 64 pixels), setting with convenient operation interface providing an accurate control of both parameters and infusion process Wide range of the adjustable occlusion level Setting of the flow rate according
Features
- Pop-up monitor: large screen 125 mm (128 × 64 pixels), setting with convenient operation interface providing an accurate control of both parameters and infusion process
- Wide range of the adjustable occlusion level
- Setting of the flow rate according to the syringes of different specification
- Control knob combined with a keyboard to simplify operation
- Automatic calculation of the flow rate according to the set infusion volume and time
- Operation modes:
Continuous flow rate infusion mode
Volume & time infusion mode
Intermittent infusion mode
Bolus & infusion mode
| Range of flow rate | 5 ml syringe: 0.1 – 150 ml/h
10 ml syringe: 0.1 – 300 ml/h 20 ml syringe: 0.1 – 600 ml/h 30 ml syringe: 0.1 – 900 ml/h 50 ml syringe: 0.1 – 1200 ml/h |
| Accuracy | ± 2 % |
| Range of total infusion volume | 0.001 – 999999 ml |
| Occlusion level evaluation | 300 – 900 kPa |
| Patient weight | 2 – 200 kg |
| Preset infusion volume | 0.1 – 1000 ml |
| Bolus rate | 5 ml syringe: 150 ml/h
10 ml syringe: 300 ml/h 20 ml syringe: 600 ml/h 30 ml syringe: 900 ml/h 50 ml syringe: 1200 ml/h |
| Compatible syringes | all the syringe in the standard capasity set 5, 10, 20, 30, 50, 60 ml
|
| Flow rate
| ml/h, mg/h, µg/h, mg/kg/h, mg/kg/min, µg/kg/h, µg/kg/min, ml/min, mg/min, µg/min |
| Battery | The battery can be used for more than 3 hours after being charged. |
| Dimensions | 339 x 197 x 177 mm |
| Weight | 4 kg |
Additional functions
- Storage function
- Evacuation of air from the syringe
- Self-test
- RS-232 communication, USB
- Transfer of data in real time
- Alarms: AC power failure, battery low, empty syringe, occlusion, end of the infusion, disengaged syringe etc.
- It can be connected to the central workstation.

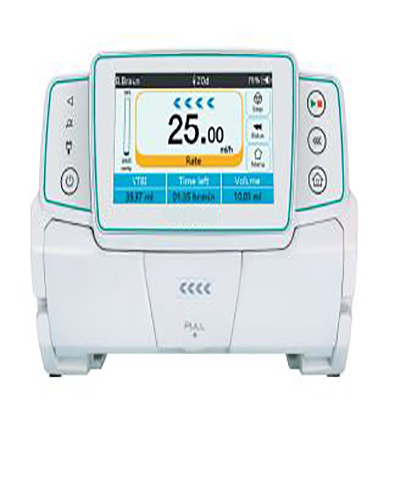

Infusion Pump
Features: High accuracy: ±5% Anti-bolus function Double air bubble detect (Instilar 1550 Pro) Double pressure detect (Instilar 1550 Pro) DERS (Drug error reduction system )- (Instilar 1550 Pro) IP Level: IP34 9 hours battery back-up time 4.3″ colourtouch screen Intuitive operation system Automatic calibration Inter-Lockable
Features:
High accuracy: ±5%
Anti-bolus function
Double air bubble detect (Instilar 1550 Pro)
Double pressure detect (Instilar 1550 Pro)
DERS (Drug error reduction system )- (Instilar 1550 Pro)
IP Level: IP34
9 hours battery back-up time
4.3″ colourtouch screen
Intuitive operation system
Automatic calibration
Inter-Lockable

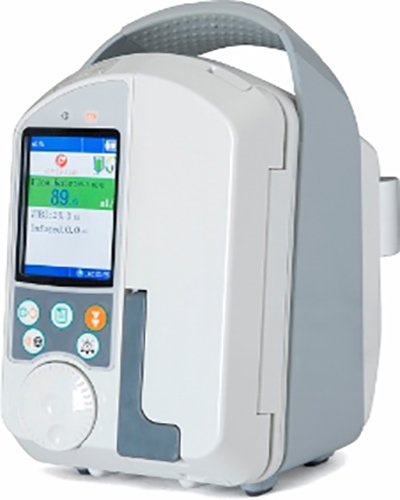

Infusion Pump
3.2″ TFT color display, interface style free switching, bid farewell to monotonous colors; Up to 9 kinds of alarms, sound, light, figure and text instructions; Wireless monitoring system to easily realize network interconnection; Five infusion modes to adapt to more environments; Can store 50,000 history records, independent or online query. Pumping Mechanism Curvilinear peristaltic IV
- 3.2″ TFT color display, interface style free switching, bid farewell to monotonous colors;
- Up to 9 kinds of alarms, sound, light, figure and text instructions;
- Wireless monitoring system to easily realize network interconnection;
- Five infusion modes to adapt to more environments;
- Can store 50,000 history records, independent or online query.
Pumping Mechanism Curvilinear peristaltic IV Set Compatible with IV sets of any standard Flow Rate 1-1200 ml/h (in 0.1 ml/h increments) Purge, Bolus Purge when pump stops, bolus when pump starts, rate at 500, 800, 1200 ml/h Accuracy ±3% VTBI 1-20000 ml (in 0.1 ml increments) Infusion Mode ml/h, drop/min, time-based, body weight, nutrition KVO Rate 1-5 ml/h (in 0.1 ml/h increments) Alarms Occlusion, air-in-line, door open, end program, low battery, end battery, AC power off, motor malfunction, system malfunction, reminder alarm Additional Features Real-time infused volume, automatic power switching, mute button, purge, bolus, system memory, history log Occlusion Sensitivity High, medium, low History дщп 50000 events Air-in-line Detection Ultrasonic detector Wireless Management Drop Sensor
Optional Vehicle Power Available Power Supply AC: 110/230 V (optional), 50/60 Hz, 20 VA Battery: 9.6±1.6 V, rechargeable Vehicle power: 12±1.2 V Battery Life 5 hours at 25 ml/h Working Temperature 10-30℃ Relative Humidity 30-75% Atmospheric Pressure 860-1060 hpa Size 130×145×228 mm Weight 2.5 kg

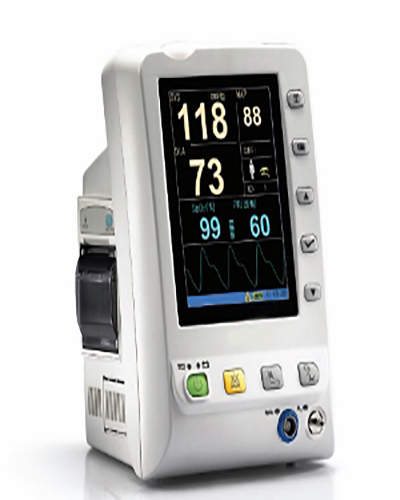

Vital Sign Monitor
The monitor Storm 5300 provides continuous monitoring of SpO2 (Nellcor – optional) and СО2 for both intubated and non-intubated patients. This monitor is portable and compact. It offers high-performance monitoring suitable for adults, children and infants.
Features
- 5.6″ LCD display
- Backlight control and standby mode for power saving
- Network capability
- Powerful storage capacity (Trend review – 72 hours, NIBP measurement review – 30,000 groups)
- Built-in rechargeable lithium battery for 8 hours working time
- External 12 V DC power input
- Auto/Manual/ Continuous/average BP mode
- Barcode scanner support
- USB flash disk support
- Nurse call
Setting variants
- Wall mount
- Rolling stand
- Bed rail clamp
Confuguration:
SpO2 only
NIBP only
NIBP + Quick Temp
NIBP + Infrared Ear Thermometer
SpO2 + Quick Temp + NIBP
SpO2 + NIBP + Infrared Ear Thermometer
Specifications:
| Display | 5.6 ” high resolution color TFT-LCD screen(640×480) |
| Battery | Lithium battery (rechargeable) |
| Paper width | 48 mm |
| Print Speed | 12.5; 25 mm/sec |
| Dimension | 174 x 235 x 189 mm |
| Weight | ≤3.5 kg (without battery) |
| SpO2 | Measuring range: 0-100 % Alarm range: 0-100% Pulse Pulse rate: 25-300 bpm Accuracy: ±2 bpm Resolution: 1 bpmNELLCORE module (OPTIONAL)Measuring range: 0-100 % Alarm range: 0-100% Pulse Pulse rate: 20-300 bpm Accuracy: ±2 bpm Resolution: 1 bpm
Sensor Wave length: ≈660- 900nm
|
| NIBP | Method: oscillometric, automatic Mode: manual, auto, continuous Measuring type: systolic (SYS), diastolic (DIA), mean( MAP), PR Measuring rang: Adult mode Pediatric mode Neonatal mode SYS 40-270 mmHg SYS 40-230 mmHg SYS 40-135 mmHg DIA 10-215 mmHg DIA 10-180 mmHg DIA 10-100 mmHg MAP 20-235 mmHg MAP 20-195 mmHg MAP 20-110mmHg |
| CO2 | Method: infra-red absorption technique Measuring mode: lateral Apnea Signal: available Measuring range: CO2 0-99 mmHg Ins CO2 0-99 mmHg AwRR 0-150 bpm |

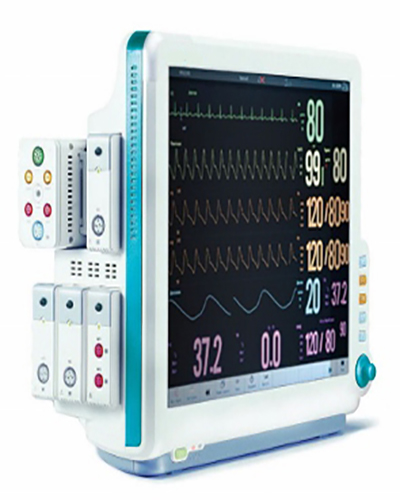

Multi Parameter Patient Monitor
These four models of modular patient monitor offer a flexible solution for the varying needs of critical care patients. Features: Anti-glare color TFT LCD touchscreen display with a variety of sizes: 8”, 12.1”, 14”, 17” (monitor models D3, D5, D6, D8) Ergonomic design Possibility to connect an additional independent display Fanless cooldown
Features:
- Anti-glare color TFT LCD touchscreen display with a variety of sizes: 8”, 12.1”, 14”, 17” (monitor models D3, D5, D6, D8)
- Ergonomic design
- Possibility to connect an additional independent display
- Fanless cooldown system keeps the monitor working quietly.
- Modular construction allows the doctor to assemble dozens of parameters with various modules into one system, as well as to buy more or vary them according to the needs of the hospital.
- Monitors are created in view of current needs and the latest technologies.
- Monitors can be assembled into Central Monitoring System using wired and wireless connection.
- Each monitor has EMS (Emergency Mobile Server), which is attached to the back of the device and, if required, can be detached and used separately as a compact computer, for example, to transport the patient to another ward.
Parametric modules
- ICG module (non-invasive impedance cardiography)
Measurement of the patient’s cardio output and hemodynamic status. Safe and easy to operate.
- Anesthesia depth module
EEG-based BIS technology. Measurement of brain waves as a parameter for the anesthesia depth.
- Multigas module
Measurement of the concentration of O2, N2O, СО2 and 5 anesthesia gases inhaled and exhaled.
- Sp02 module
Optional: Nellcor or Masimo
- IBP module (invasive blood pressure)
Maximum 8 IBP measurements
- Capnometry module
Optional: sidestream, mainstream, microstream. Suitable for intubated and non-intubated patients and patients dependent on ventilation.
Main features of the patient monitor series DIXION Storm

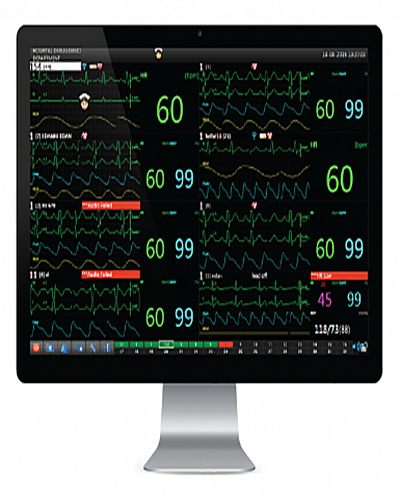

Central Monitoring System
Central Monitoring Station (CMS) allows you to monitor and control patient’s condition in real time, get notifcations for each patient when certain parameters go beyond normal range. With the CMS you can also review the history of the saved patient data, print selected parameters, waveforms and trends. All databases are kept in one system which guarantees fast access to needed information.
- 12 hours – Short trends
- 96 hours – Waveforms of all parameters
- 240 hours – Trends
- 720 – NIBP records
- 720 – Alarms
Up to 128 monitors in one system
Up to 20 000 patient IDs
Wired connection (UTP-cable)
Wireless connection possible (Wi-Fi)
Analytics and calculation of drug doses, hemodynamics, respiration and SpO2
Simultaneous visualization of 32 diagrams from 16 bedside monitors
Support of HL7 and XML protocols
Remote operation of patient’s monitor:
Time synchronization
NIBP measurement
Changing patient’s ID and data
Setting parameters for critical alarms
