Blood Bank

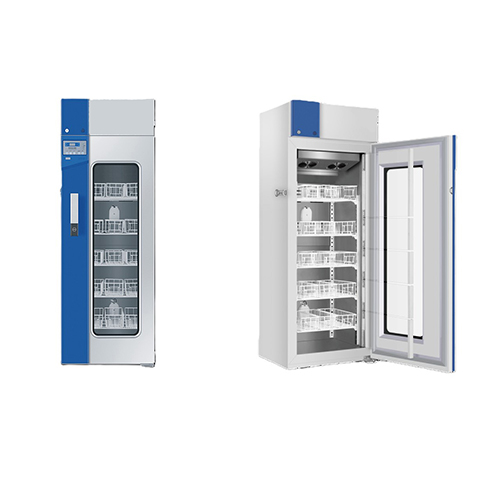

Blood Bank Refrigerator
Refrigeration system is designed with an inverter compressor and dual-speed fans, providing an optimal temperature performance of 4± 1°C inside the cabinet to safeguard stored products.
With Multiple Temperature Control to Guarantee Constant and Precise Temperature . The inside temperature is constant within 4±1°C, the digital temperature display resolution at 0.1°C. Equipped with 6 high-precision sensors and a mechanical thermostat which enables more accurate air cooling and temperature control to ensure uniform temperature inside the unit, maintained within the specified temperature range. The multi-layer inner door design reduces thermal loss after door openings and further ensures the temperature stability inside the cabinet .
With Multiple Safety Guarantees to Provide Worry-Free
Service
- Equipped with complete alarm function, including alarm on high and low
temperature, power failure, door ajar, sensor error, and low battery. Two
alarm modes including audible buzzer and visual lights with remote
alarm interface. - Back-up battery design ensures alarm and temperature readings
continue to operate in the event of a main power failure. - NFC swipe card module, with safer storage management
Standard USB Interface
- Ability to record temperature data for ten years by using the USB.
- Interface, disc temperature recorder is also available.
NFC Rights Management
- NFC rights management system is designed with an electromagnetic lock with controllable, checkable and
traceable flow direction, providing safer blood management.

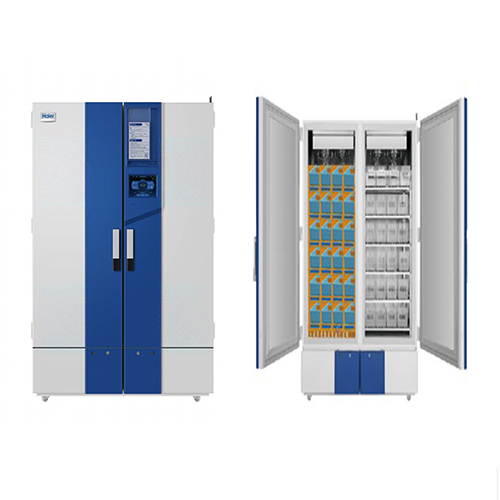

Plasma Refrigerator
The 10-inch large touch screen ensures an easier operating experience. Capable of displaying interior real-time temperature, ambient temperature, temperature set point, input voltage, network status, user login status, temperature curve and new message/notebook, etc. Query interface can display plasma donation code, product code, blood type, blood volume, period of validity, etc.
Equipped with IoT function, capable of sending users the equipment alarm information in the form of text messages. Download bio-link APP to monitor and check cabinet temperature, alarms and event logs from anywhere at anytime.
Equipped with a special filter, ensuring the cleanness and safety of interior air.
Multi-compartment storage basket design, streamlines plasma storage and placement, easy to access.
·Equipped with dual cooling system, if one system fails, the other system can maintain the interior temperature at -25°C for an extended period, safe and reliable.
·RFID read-write board can read plasma label information, providing inventory plasma information statistics. Supports automatic inventory, one-key inventory and plasma in-out stock storage information.
| Model | Display | Temperature Range (℃) | Power Supply (V/Hz) | Exterior Dimensions (W*D*H)(mm) |
| DW-30L1280FT | LCD | -10~-35 | 220～240/50 | 1520*1065*1980 |

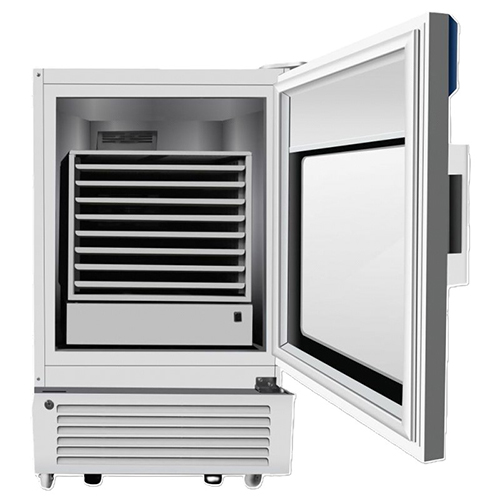

Platelet Incubator
This incubator includes an integrated platelet agitator and is designed to create the optimal storage environment of platelets after collection. Suitable for hospitals, blood stations and research applications.
Product Features: Data Traceability, Multiple Alarms, Reliable Oscillation, Low Noise, Energy Saving, Superior Insulation Performance, Precise Temperature Control, Ultraviolet Disinfection
Specifications
| Model | Effective Capacity (L) | Tray | Power Supply (V/Hz) | Exterior Dimensions (mm) | Net Weight (kg) |
| HXZ-149 | 149 | 9 | 220/50/60 | 625*795*1050 | 114 |
| HXZ-1369 | 1369 | 18 | 220/50/60 | 1545*915*1945 | 345 |

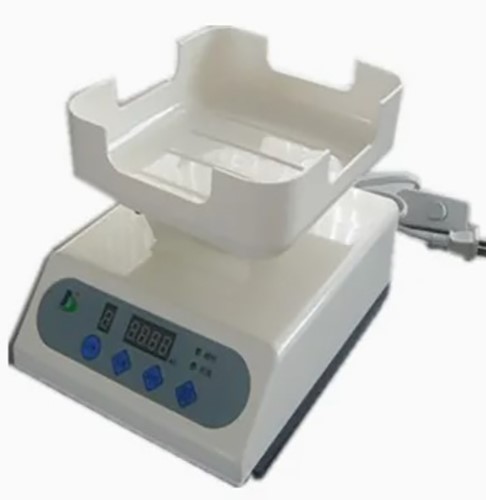

Blood Mixer Monitor
Soft shaking mode, ensure safety for the vulnerable blood platelet and red blood cells. Unique rotary pendulum design, ensure measuring accuracy. Imported constant speed motor with low noise and long life. Optional interrupter to control blood collection volume. Optional battery which can last 5~7 days after charging.
Technical parameter:
| SN | Model | CY-1A |
| 1 | Measuring range | 900ml(including bag weight) |
| 2 | Resolution | 2ml |
| 3 | Liquid proportion | 1.05g/ml |
| 4 | Collection speed | 0.5~3ml/s |
| 5 | static error | ±2g |
| 6 | Tray swing frequency | 30 r/min |
| 7 | Alarm | Automatic alarm after finishing collection |
| 8 | Ambient temp. | 5ºC~40ºC |
| 9 | Power supply | 220V, 50HZ 40W |
| 10 | Overall dimension | 220×165×150mm |
| 11 | Weight | 1.4kg |

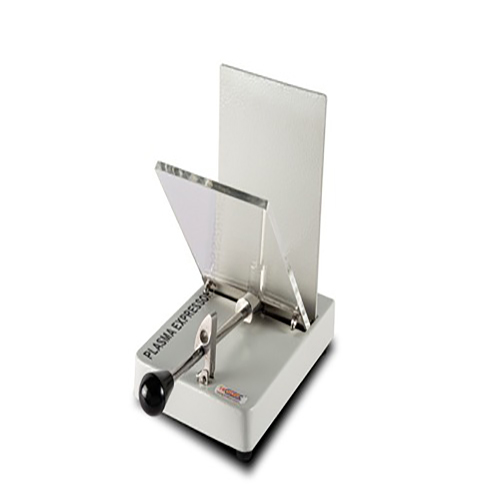

Plasma Expresser
A plasma expresser is a device specifically made to separate the components of blood. High tension springs are inserted into the plasma expresser’s front panel to facilitate the rapid transfer of plasma into another bag. The ergonomic design of the plasma expresser ensures long-lasting, trouble-free operation.
| Cat. No. | LPE-1 | LPE-2 |
| Control | Manual | Electronic |
| Sensor | NA | Optical |
| Clamping | NA | Motor activated |
| Sensor | NA | Audio-Visual |
| Pressure plate | Acrylic | |
| Material of construction | Mild steel powder coated | |
| Voltage | NA | 90 – 270 V AC / 50 – 60 Hz |
| Size (LXWXH) cms | 232 x 165 x 243 | Hz 252 x 165 x 243 |
Blood Transfusion Chair
The entire process is made simpler and more pleasurable by ergonomic design, which also reduces psychological strain and provides blood donors with a sense of security and comfort. High-strength fibre material and poly-layer paint are used to create the appearance. Upholstery with foam that is 60 mm thick including two motors for adjusting the leg rest, back, and height High-quality powder-coated steel is used to make the chair frame. Armrests with pivoting articulation and height and depth adjustments Included are four ø 100 mm casters with separate locking mechanisms to make moving the donor chair easier.
Technical Parameter
| Model | YA-DS-D02 |
| Overall size | 1980*550*580mm |
| Back section adjustment | 0~ 70° |
| Leg section adjustment | 20 ° -90 ° |
| Armrest swing out | 0 °-180° |
| Armrest height adjustment | 100mm |
| Armrest size | 480*160mm |
| Loading capacity | 180kg |
Accessories
– Standard configuration Handrails rack: 1pc
– Multimedia support: 1pc
– Small table: 1pc
– Soft velvet cover: 2pcs
– Handset: 1pc
– Footrest 1pc
– Power line: 1pc
– Recommend optional configuration LED Hose-type exclusive reading lamp: 1pc
– Movable assistant desk 1pc

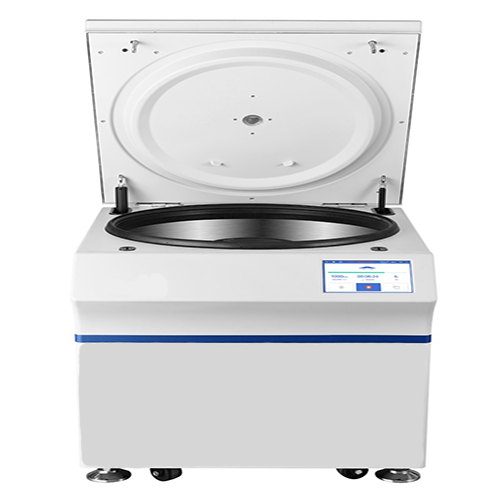

Centrifuge Machine
A centrifuge is a machine that separates different fluid components, for instance, by applying a specific constant force to a specimen using centrifugal force. This is accomplished by rapidly spinning the fluid inside a container, which separates liquids from solids or fluids with varying densities (such as cream from milk). It functions by forcing denser materials and particles to radiate outward. Simultaneously, less dense things are moved to the centre and displaced. Denser particles sink to the bottom of a sample tube in a laboratory centrifuge that employs them, while low-density materials float to the top due to the radial acceleration.[1] A centrifuge can be a very useful filter for removing impurities.
Product Features:
Ergonomic Angled Touch Screen
The 10-inch 45° glove-friendly touchscreen, easy, comfortable and practical for users of all heights.
Precise Speed Control
- High-precision speed control technology to ensure the accuracy of experimental data。
High-volume Processing
- Able to handle 14.4L samples or 12 bags of 500ml quadruple blood bags per run. For use with 250ml, 500ml, 1000, 2400ml centrifuges tubes/bottles. (Equipped with 2 types of rotors and 3 kinds of adapters as standard).
Precise Temperature Control and Ultra-fast Refrigeration
The fuzzy PID control with seamless evaporator to achieve rapid temperature contro
Precooling from 22°C to 4°C, takes only 15 minutes.
Unique temperature control technology enables fast temperature adjustments of the centrifuge chamber and accessories to a defined temperature, which is particularly important when working with pre-chilled blood pouches
Quiet Operation
- It ensures a pleasantly quiet working environment with a noise level of 65dB and smooth running even at maximum speed (7500)
Multi-level User Management
- Effectively protects personal data. centrifugal programs and operation parameters can be stored separately to avoid data disorder
Convenient Operation
Storage for numerous protocols
Automatic rotor lid opening and closing with lid storage
One button automatic front-to-back door opening and closing
Safe Operation
Engineered and manufactured in accordance with all relevant safety and production standards
Anti vibration lid lock/active balance detection/over temperature/speed protection/fully covered steel plate protective sleeve and 12mm steel shell
Rotors are made of high-performance materials for outstanding lifetime
